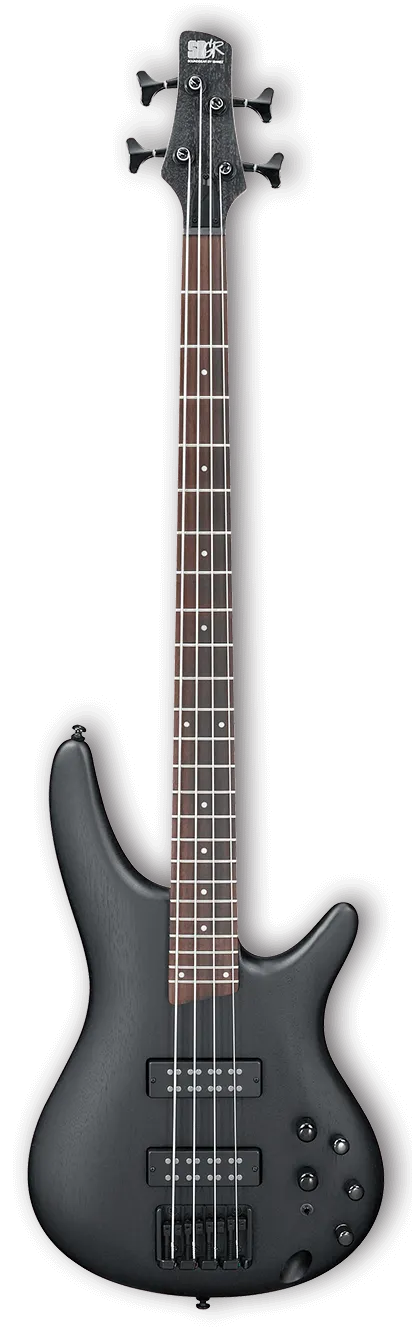

SPEC

Neck type: SR4 5pc Maple/Walnut neck

Body: Nyatoh

Fretboard: Jatoba White dot inlay

Fret: Medium frets

Number of frets: 24

Bridge: Accu-cast B120 bridge (19mm string spacing)

Neck pickup: PowerSpan Dual Coil neck pickup (Passive)

Bridge pickup: PowerSpan Dual Coil bridge pickup (Passive)

Equaliser: Ibanez Custom Electronics 3-band EQ w/3 way Power Tap switch

Factory tuning: 1G, 2D, 3A, 4E

String gauge: .045/.065/.085/.105

Hardware colour: Black

NECK DIMENSIONS

Scale: 864mm/34"

a : Width: 38mm at NUT

b : Width: 62mm at 24F

c : Thickness: 19.5mm at 1F

d : Thickness: 21.5mm at 12F

Radius: 305mmR

5pc Maple/Rosewood neck

The SR neck is famous for its slim easy-to-play profile. The 5pc Maple/Rosewood construction provides excellent strength and stability while enhancing sustain.

PowerSpan Dual Coil pickups

Developed by Ibanez, the exposed pole pieces of the PowerSpan Dual Coil pickups produce a stronger signal, and increase the response of the higher frequencies without sacrificing low end. The result is a tone rich in harmonic detail and dynamic expression.

Ibanez Custom Electronics 3-band EQ w/3-way Power Tap switch

The 3-band EQ works in conjunction with a coil tap switch for maximum control over a wide variety of professional bass tones. Tap Mode (single coil) creates a punchy, dynamic sound with superior articulation. Series Mode (humbucking) delivers a full, warm tone, and Power Tap Mode provides the best of both worlds-combining the clarity of the single coil with the fat bottom end of the humbucker.

Accu-cast B120 Bridge

The B120's extra-wide string slots can accommodate even the heaviest of gauges. Walls and channels of the new bridge plate effectively "trap" the saddles, ensuring perfect directional uniformity.
