DIFFUSORE ATTIVO 12" 2000W Picco
Diffusore attivo 2000w cono da 12" Picco
-
Caratteristiche:
- Configuration Multi-purpose, 2-way active loudspeaker
- LF Transducer 305 mm (12-inch), cone
- HF Transducer 35.6 mm (1.4-inch) titanium diaphragm compression driver
- Frequency Response (-6 dB) 50 Hz - 20 kHz
- Frequency Range (-10 dB) 45 Hz - 20 kHz
- Nominal Coverage Angle 75° Axisymetric
- Maximum Rated SPL1
- Amplifier Cooling 132 dB @ 1 M, peak 126 dB @ 1 M, continuous
- Class D Peak: 1800 W (LF), 225 W (HF)
- Low-noise, variable speed fan
- Controls Power 3 × Level
- Rotary encoder (push) 2 × selection buttons
- Indicators Monochrome LCD Display 1.75-inch x 1-inch (45 mm x 25.4 mm)
- 2 × Power LED (front and rear)
- 3 × Input Signal LED
- Input A Mic selected LED
- Input B Hi-Z selected LED
- Limiter active LED

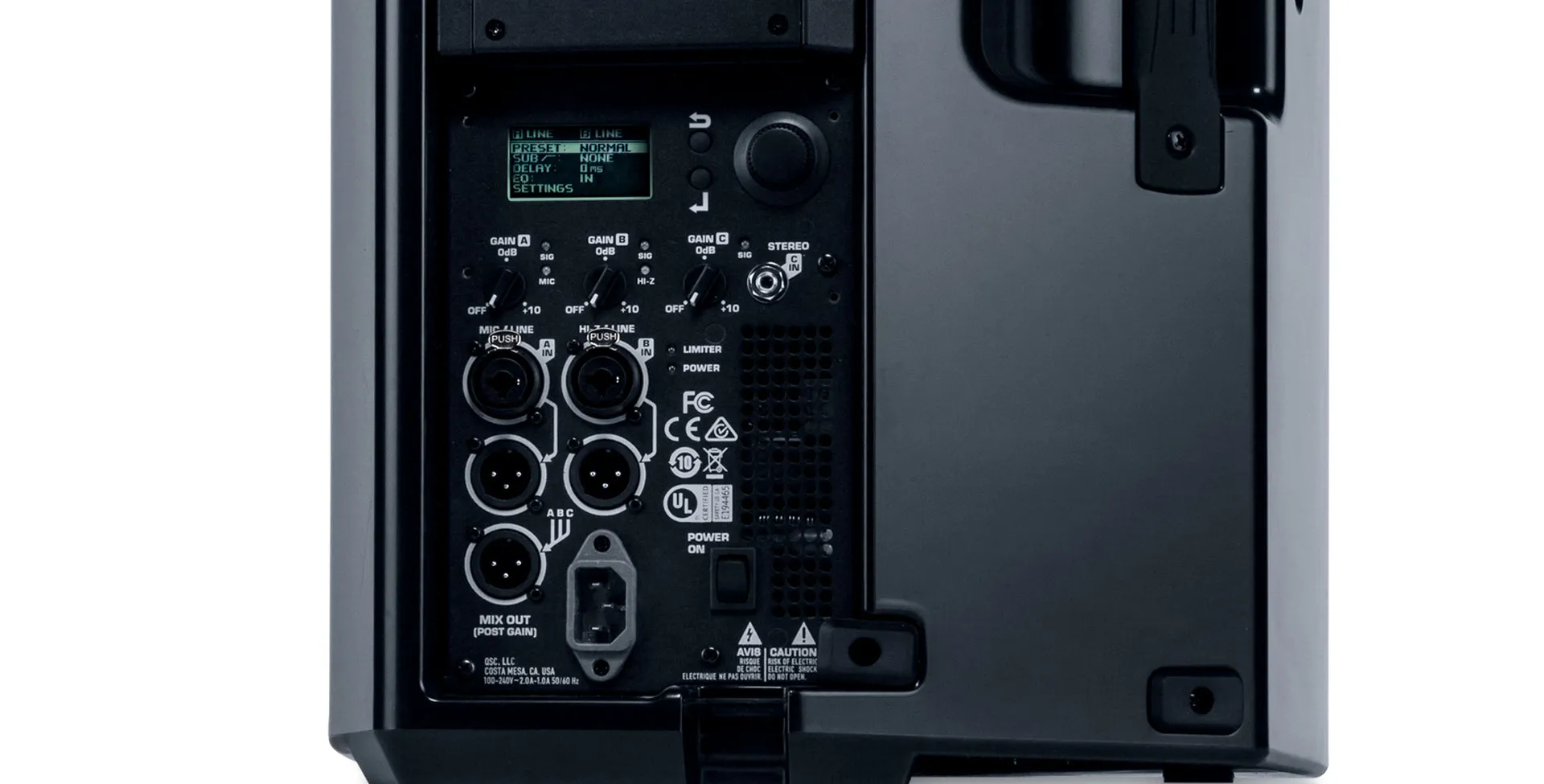

- Connectors 2 × locking XLR/F ¼⁻ᶦⁿᶜʰ combo (Mic/Line Input and Hi-Z/Line Input
- 1 × 3.5 mm TRS (Stereo Input)
- 2 × XLR/M (Loop-thru Output)
- 1 × XLR/M (Mix Output)
- 1 × locking IEC power connector
- AC Power Input Universal power supply 100 – 240 VAC, 50 – 60 Hz
- AC Power Consumption 1/8th Power2 100 VAC, 2.1 A / 120 VAC, 1.9 A / 240 VAC, 1.1 A
- AC Power Consumption - Standby 0.2 A at any voltage
- Enclosure Details
- Enclosure Impact Resistant ABS
- Attachment Points 2 × M10 threaded inserts plus Pull-Back
- Color Black (RAL 9011)
- Grille 18 Gauge powered coated steel, internal cloth lining
- Speaker Dimensions (HxWxD) 602 × 356 × 350 mm
- 23.7 × 14 × 13.8 in
- Carton Dimensions (HxWxD) 570 × 470 × 464 mm
- 22.5 × 18.5 × 18.3 in
- Net Weight 17.7 kg / 39 lb
- Shipping Weight 21.6 kg / 47.6 lb
- Regulatory CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
- Optional Accessories K12 Tote, K12 Outdoor Cover
- M10 Kit-C, K.2-LOC LockOut Cover
- K12.2 Yoke
